Welcome to our comprehensive overview of Metirionic’s advanced evaluation tools, designed to enhance your wireless ranging and localization projects. Our offerings include:
each tailored to provide precise and reliable measurements for various applications.
Our Channel Sounding Evaluation Application is a powerful tool that enables real-time monitoring of distance measurements using Bluetooth® Channel Sounding technology. Paired with Metirionic’s Advanced Ranging Stack (MARS), this application facilitates continuous distance assessments between an initiator and a reflector development kit, providing users with detailed insights into signal paths and environmental interactions.
Key Features:
For a detailed guide on setup and operation, download our User Guide.
The Metirionic Channel Sounding Evaluation Kit is now distributed through the official Metirionic GitHub organization.
This gives developers direct access to the latest firmware source code, precompiled firmware images, documentation, release notes, and future updates.
The Channel Sounding firmware is available as open source under the MIT License, including precompiled firmware images for quick evaluation. The Metirionic PC Evaluation Application is provided separately and requires an activation key (license), which can be requested by contacting contact@metirionic.com.
The firmware for supported Nordic nRF54L15-based development boards is available in the following repository:
Firmware source code:
https://github.com/Metirionic/mars-cs-nrf54l
The repository supports two evaluation approaches:
Channel Sounding requires two compatible boards: one configured as the initiator and one as the reflector. The repository contains firmware variants and documentation for both roles.
Ready-to-flash firmware packages are published on the GitHub Releases page:
Latest firmware release:
https://github.com/Metirionic/mars-cs-nrf54l/releases/latest
For a reproducible evaluation setup, we currently recommend v1.7.1:
Download firmware v1.7.1:
https://github.com/Metirionic/mars-cs-nrf54l/releases/download/v1.7.1/cs-ranging-firmware.zip
Detailed flashing instructions, supported hardware configurations, firmware presets, and build instructions are available in the repository documentation.

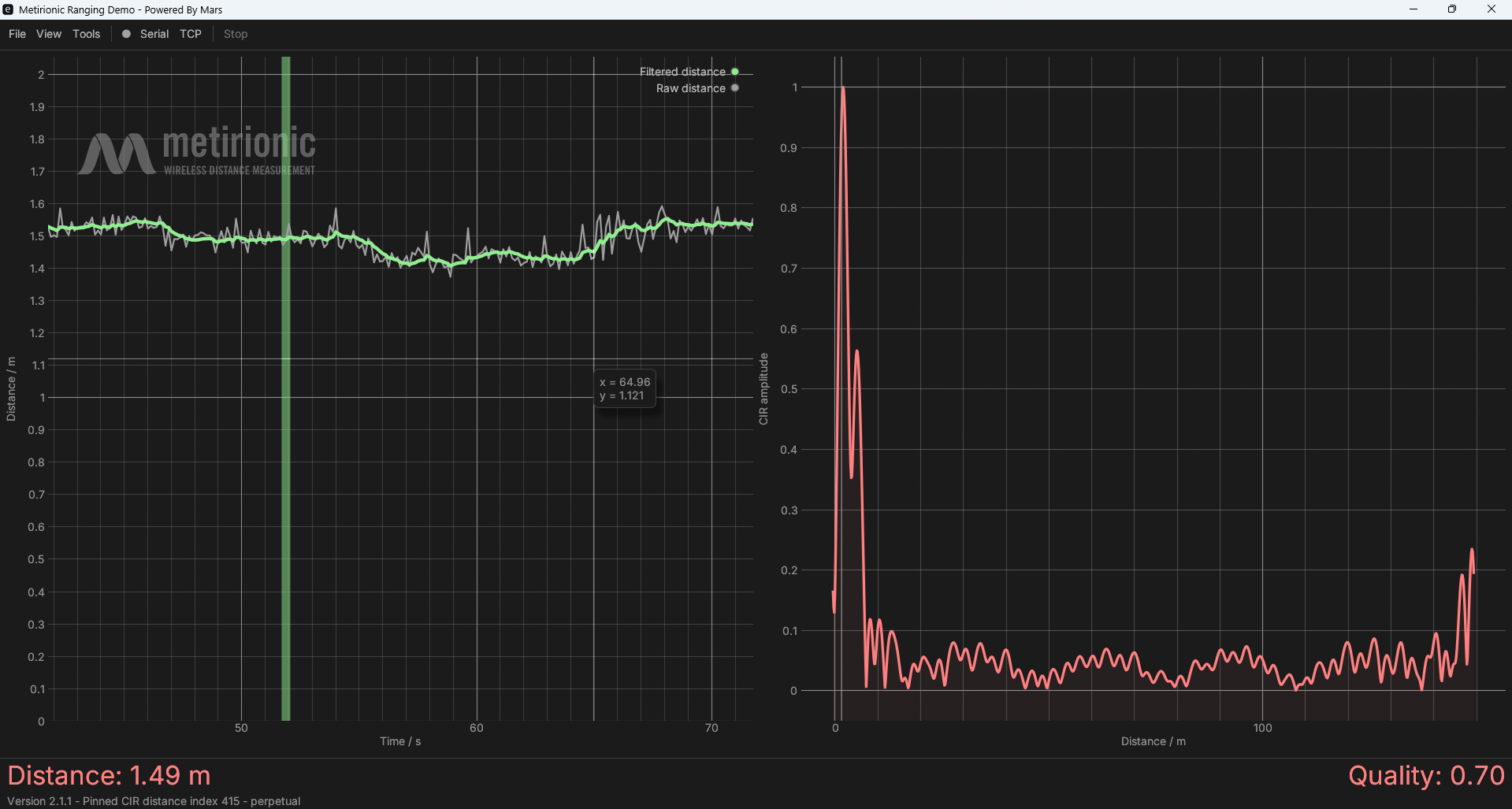

The Metirionic PC Evaluation Application provides a graphical interface for real-time visualization of Bluetooth® Channel Sounding measurements, data recording, and result export.
Download the latest Windows application:
The application requires an activation key (license) before it can be used. Interested customers can request an evaluation license by contacting contact@metirionic.com.
The project repository, release history, and future updates are available on GitHub:
The nRF54L15 Development Kit supports all three SoC options in Nordic’s nRF54L Series and is fully compatible with Metirionic’s MARS for high-accuracy Bluetooth® Channel Sounding and advanced ranging. It provides an ideal platform for evaluating RTLS, asset tracking, and industrial IoT applications.
Read more about here: nRF54L15 DK
Related Links:

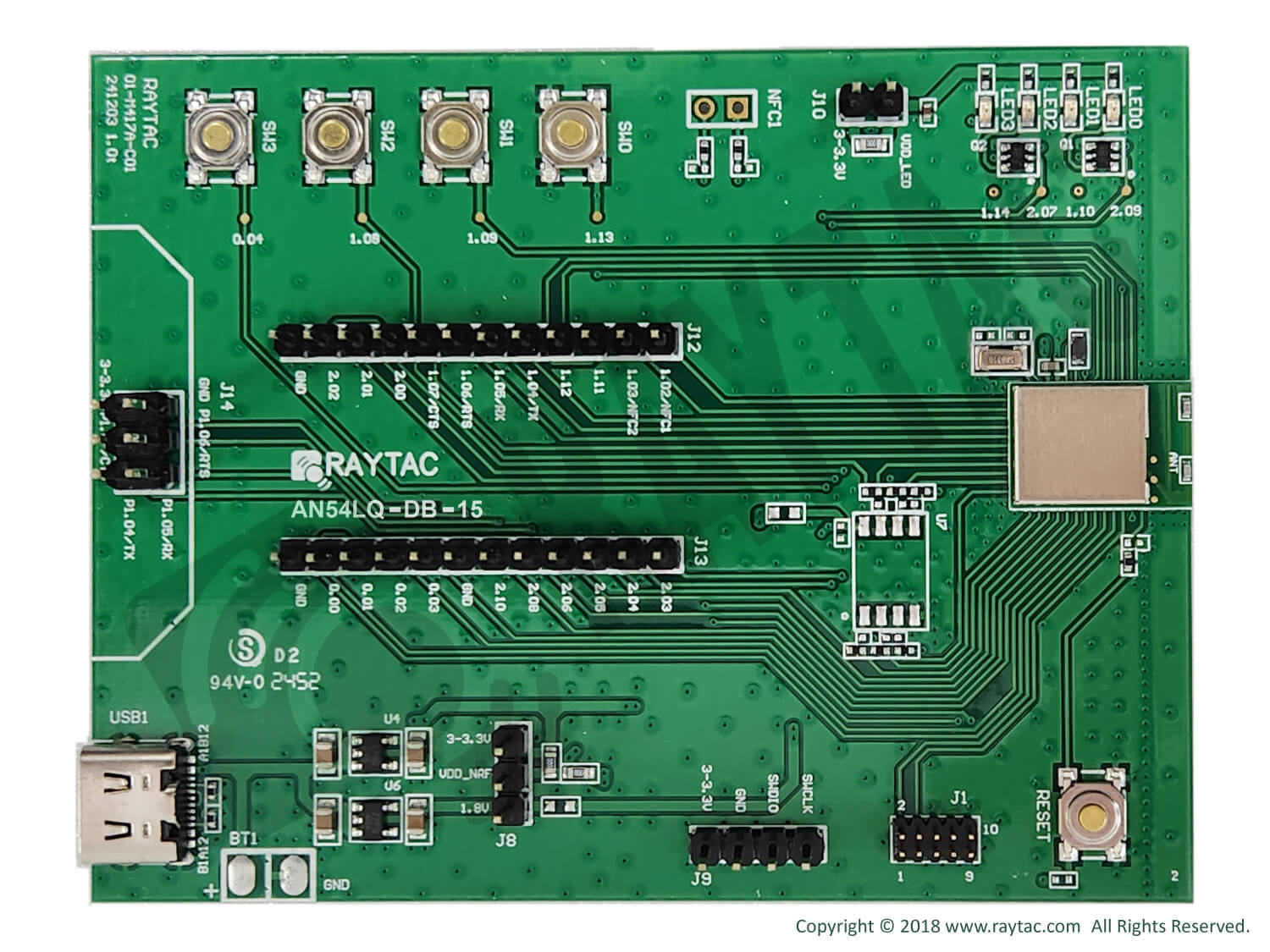

Metirionic’s MARS integrates with the Raytac AN54LQ-DB-15 development board, enabling high-accuracy Bluetooth® Channel Sounding and advanced ranging. This platform provides a solid foundation for RTLS, asset tracking, and industrial IoT solutions. AN54LQ-DB-15 demo board is designed for quick testing and debugging without building your own board. The board is available with AN54LQ-15 (Chip Antenna), AN54LQ-P15 (PCB Antenna), and AN54LQ-U15 (u.FL Connector) modules.
Read more about it here: AN54LQ-DB-15

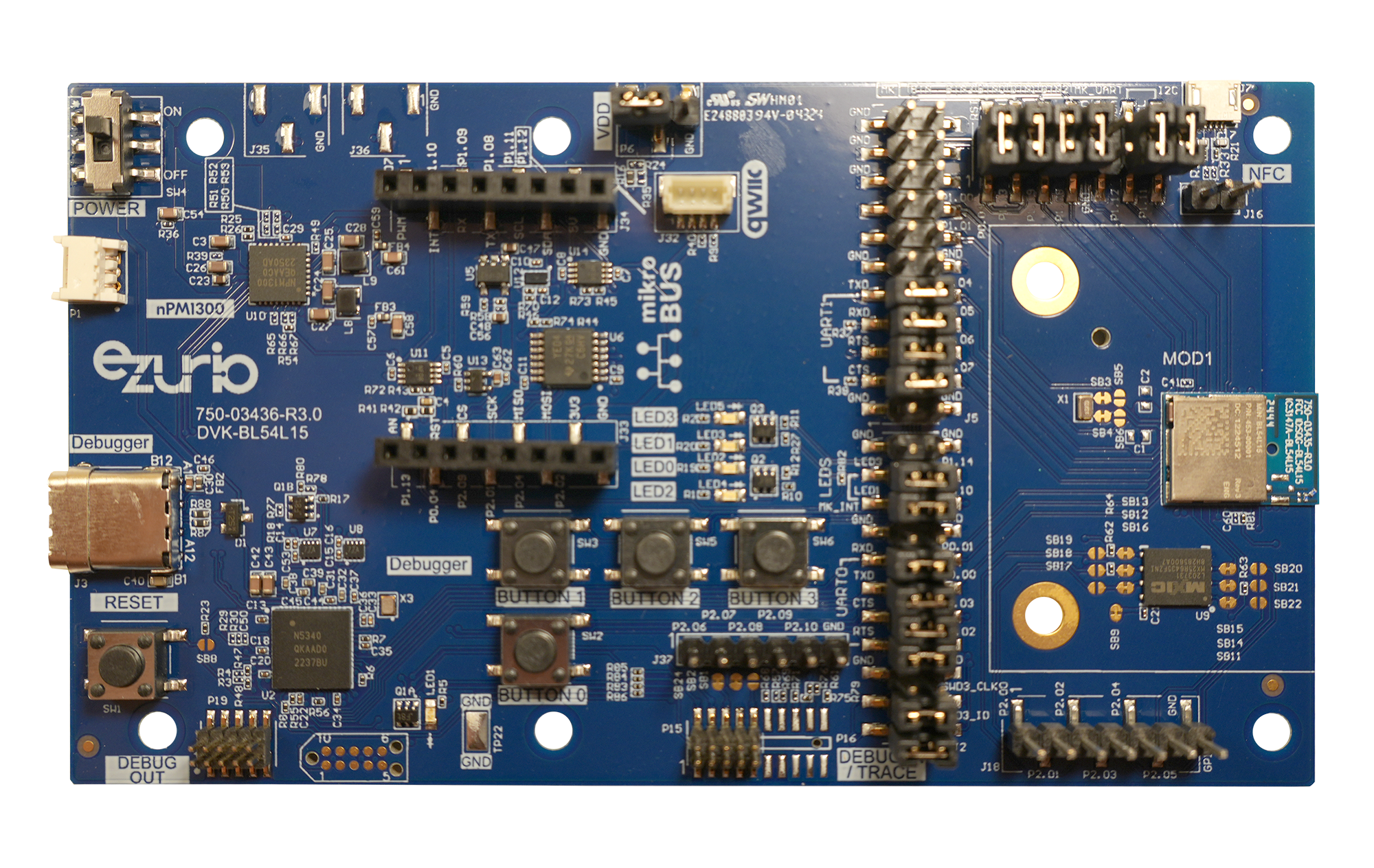

Metirionic’s MARS now runs on the Ezurio BL54L15 Series platform, enabling high-accuracy Bluetooth® Channel Sounding and advanced ranging features. This kit combines Bluetooth® LE, IEEE 802.15.4, and NFC, making it an excellent choice for RTLS, asset tracking, and industrial IoT applications.
Read more about it here: BL54L15 Development Kit

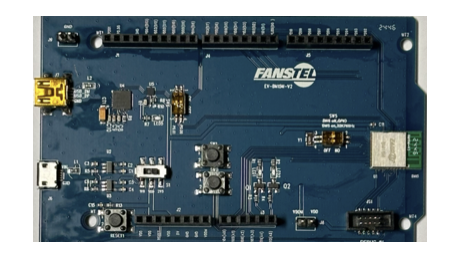

Metirionic’s MARS now supports the Fanstel BM15 Series modules, including BM15C (chip antenna), BM15E (u.FL connector), and BM15M (PCB antenna), all powered by the Nordic nRF54L15 SoC—a multi‑protocol solution (BLE, Thread, Zigbee, Matter, proprietary) ideal for high‑accuracy ranging, RTLS, asset tracking, and industrial IoT applications. These modules include integrated security features, ample memory, and ultra‑low‑power performance.
Read more about it here: Fanstel BM15 nRF54L15 modules
The DMK-54L Evaluation Kit is tailored for developers aiming to explore the capabilities of Bluetooth® 6.0 Channel Sounding. This kit integrates Metirionic’s Advanced Ranging Stack (MARS) with the Nordic nRF54L15 platform, enabling precise and reliable distance measurements even in challenging multipath environments.
Key Features:
To learn more about the DMK-54L Evaluation Kit, download our DMK-54L Product Brief.
The DMK-215 Demo Kit is a plug-and-play solution designed to showcase Metirionic’s patented ranging technology in real-world conditions. Built around the Microchip AT86RF215 transceiver, this kit allows developers to evaluate wireless distance and angle measurements, making it ideal for applications such as collision avoidance, access control, and real-time location systems.
Key Features:
For more information, download the DMK-215 Product Brief.
Metirionic’s evaluation tools are designed to provide developers with the resources needed to implement and assess advanced wireless ranging solutions effectively. Whether you’re working on industrial automation, IoT applications, or secure access systems, our products offer the precision and reliability required for success.
For further assistance or inquiries, please contact us.
